DLB_interface_stats.c File Reference

#include "apis/dlb_stats.h"
#include "LB_comm/shmem_procinfo.h"
#include "LB_core/spd.h"
#include "apis/dlb_errors.h"
#include "support/dlb_common.h"
#include "support/mask_utils.h"
#include "support/options.h"
#include <stddef.h>

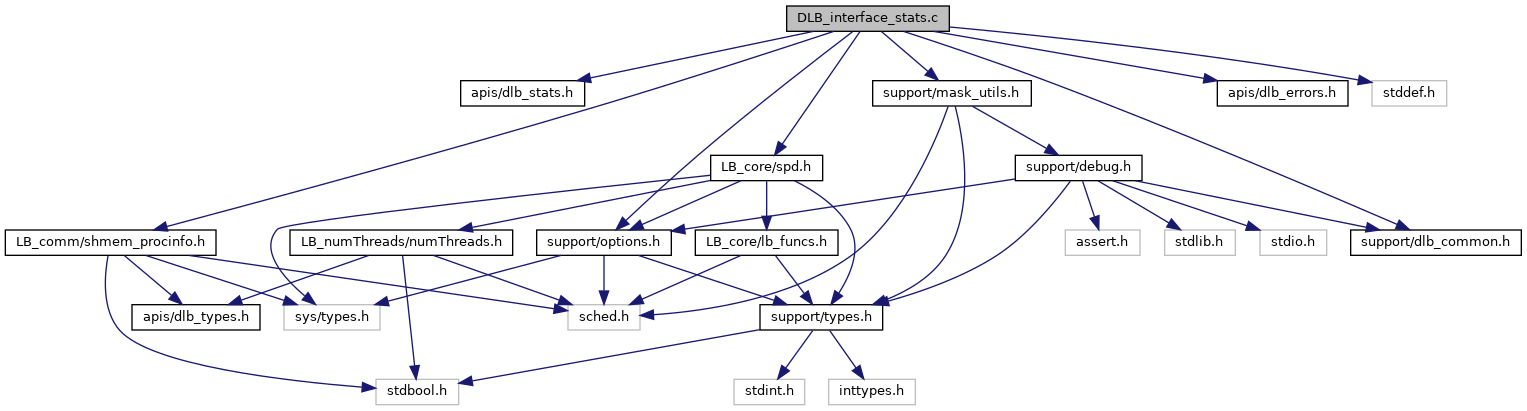

Include dependency graph for DLB_interface_stats.c:

Functions
DLB_EXPORT_SYMBOL int	DLB_Stats_Init (void)
	Initialize DLB Statistics Module. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_Finalize (void)
	Finalize DLB Statistics Module. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetNumCpus (int *ncpus)
	Get the total number of available CPUs in the node. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetPidList (int *pidlist, int *nelems, int max_len)
	Get the PID's attached to this module. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuUsage (int pid, double *usage)
	Get the CPU Usage of the given PID. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuAvgUsage (int pid, double *usage)
	Get the CPU Average Usage of the given PID. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuUsageList (double *usagelist, int *nelems, int max_len)
	Get the CPU usage of all the attached PIDs. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuAvgUsageList (double *avgusagelist, int *nelems, int max_len)
	Get the CPU Average usage of all the attached PIDs. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetNodeUsage (double *usage)
	Get the CPU Usage of all the DLB processes in the node. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetNodeAvgUsage (double *usage)
	Get the CPU Average Usage of all the DLB processes in the node. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetActiveCpus (int pid, int *ncpus)
	Get the number of CPUs assigned to a given process. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetActiveCpusList (int *cpuslist, int *nelems, int max_len)
	Get the number of CPUs assigned to each process. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetLoadAvg (int pid, double *load)
	Get the Load Average of a given process. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuStateIdle (int cpu, float *percentage)
	Get the percentage of time that the CPU has been in state IDLE. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuStateOwned (int cpu, float *percentage)
	Get the percentage of time that the CPU has been in state OWNED. More...
DLB_EXPORT_SYMBOL int	DLB_Stats_GetCpuStateGuested (int cpu, float *percentage)
	Get the percentage of time that the CPU has been in state GUESTED. More...

Function Documentation

DLB_Stats_Init()

DLB_EXPORT_SYMBOL int DLB_Stats_Init

(

void

)

Initialize DLB Statistics Module.

Returns

error code

DLB_Stats_Finalize()

DLB_EXPORT_SYMBOL int DLB_Stats_Finalize

(

void

)

Finalize DLB Statistics Module.

Returns

error code

DLB_Stats_GetNumCpus()

DLB_EXPORT_SYMBOL int DLB_Stats_GetNumCpus

(

int *

ncpus

)

Get the total number of available CPUs in the node.

Parameters

[out]

ncpus

the number of CPUs

Returns

error code

DLB_Stats_GetPidList()

DLB_EXPORT_SYMBOL int DLB_Stats_GetPidList	(	int *	pidlist,
		int *	nelems,
		int	max_len
	)

Get the PID's attached to this module.

Parameters

[out]	pidlist	The output list
[out]	nelems	Number of elements in the list
[in]	max_len	Max capacity of the list

Returns

error code

DLB_Stats_GetCpuUsage()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuUsage	(	int	pid,
		double *	usage
	)

Get the CPU Usage of the given PID.

Parameters

[in]	pid	PID to consult
[out]	usage	the CPU usage of the given PID, or -1.0 if not found

Returns

error code

DLB_Stats_GetCpuAvgUsage()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuAvgUsage	(	int	pid,
		double *	usage
	)

Get the CPU Average Usage of the given PID.

Parameters

[in]	pid	PID to consult
[out]	usage	the CPU usage of the given PID, or -1.0 if not found

Returns

error code

DLB_Stats_GetCpuUsageList()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuUsageList	(	double *	usagelist,
		int *	nelems,
		int	max_len
	)

Get the CPU usage of all the attached PIDs.

Parameters

[out]	usagelist	The output list
[out]	nelems	Number of elements in the list
[in]	max_len	Max capacity of the list

Returns

error code

DLB_Stats_GetCpuAvgUsageList()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuAvgUsageList	(	double *	avgusagelist,
		int *	nelems,
		int	max_len
	)

Get the CPU Average usage of all the attached PIDs.

Parameters

[out]	avgusagelist	The output list
[out]	nelems	Number of elements in the list
[in]	max_len	Max capacity of the list

Returns

error code

DLB_Stats_GetNodeUsage()

DLB_EXPORT_SYMBOL int DLB_Stats_GetNodeUsage

(

double *

usage

)

Get the CPU Usage of all the DLB processes in the node.

Parameters

[out]

usage

the Node Usage

Returns

error code

DLB_Stats_GetNodeAvgUsage()

DLB_EXPORT_SYMBOL int DLB_Stats_GetNodeAvgUsage

(

double *

usage

)

Get the CPU Average Usage of all the DLB processes in the node.

Parameters

[out]

usage

the Node Usage

Returns

error code

DLB_Stats_GetActiveCpus()

DLB_EXPORT_SYMBOL int DLB_Stats_GetActiveCpus	(	int	pid,
		int *	ncpus
	)

Get the number of CPUs assigned to a given process.

Parameters

[in]	pid	Process ID to consult
[out]	ncpus	the number of CPUs used by a process

Returns

error code

DLB_Stats_GetActiveCpusList()

DLB_EXPORT_SYMBOL int DLB_Stats_GetActiveCpusList	(	int *	cpuslist,
		int *	nelems,
		int	max_len
	)

Get the number of CPUs assigned to each process.

Parameters

[out]	cpuslist	The output list
[out]	nelems	Number of elements in the list
[in]	max_len	Max capacity of the list

Returns

error code

DLB_Stats_GetLoadAvg()

DLB_EXPORT_SYMBOL int DLB_Stats_GetLoadAvg	(	int	pid,
		double *	load
	)

Get the Load Average of a given process.

Parameters

[in]	pid	Process ID to consult
[out]	load	double[3] Load Average ( 1min 5min 15min )

Returns

error code

DLB_Stats_GetCpuStateIdle()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuStateIdle	(	int	cpu,
		float *	percentage
	)

Get the percentage of time that the CPU has been in state IDLE.

Parameters

[in]	cpu	CPU id
[out]	percentage	percentage of state/total

Returns

error code

DEPRECATED: Functionality no longer provided.

DLB_Stats_GetCpuStateOwned()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuStateOwned	(	int	cpu,
		float *	percentage
	)

Get the percentage of time that the CPU has been in state OWNED.

Parameters

[in]	cpu	CPU id
[out]	percentage	percentage of state/total

Returns

error code

DEPRECATED: Functionality no longer provided.

DLB_Stats_GetCpuStateGuested()

DLB_EXPORT_SYMBOL int DLB_Stats_GetCpuStateGuested	(	int	cpu,
		float *	percentage
	)

Get the percentage of time that the CPU has been in state GUESTED.

Parameters

[in]	cpu	CPU id
[out]	percentage	percentage of state/total

Returns

error code

DEPRECATED: Functionality no longer provided.
